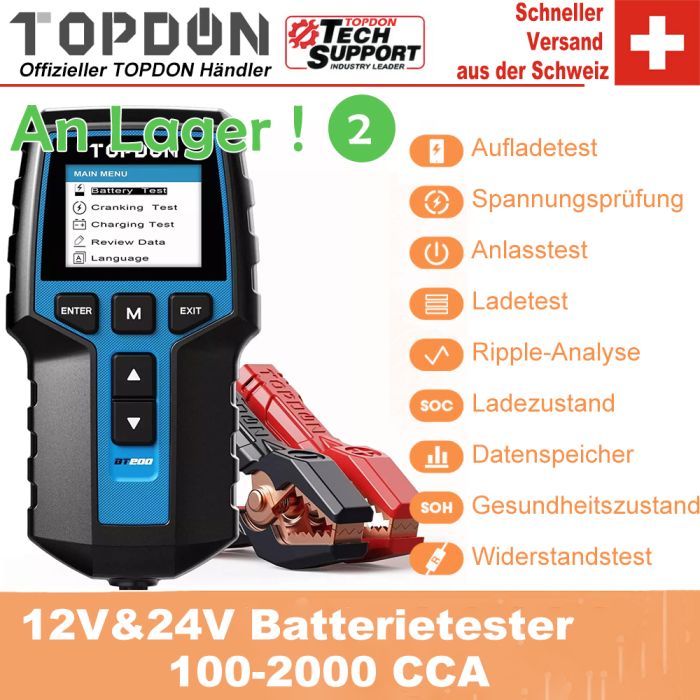

TOPDON BT200
Adopting the most advanced conductivity test technology, reverse polarity protection, etc., TOPDON BT200 serves as a 12V to 24V battery tester to provide technicians with important information about the condition of the battery to find battery and charging problems quickly, easily and accurately.
Specifications:
Display.24" LCD
Screen resolution: 320-240 pixels
Cable reach: 0.920 mm (36.22 in)
Storage Temperature: -20*C~70*C (-4~158*F)
Working Temperature -20C~60'C (-4~140F)
Dimensions (L x wH): 178-94.533 mm (7 x 3.72 + 1.3 in)
Weight: 440g (097lb)
LANGUAGE:
Spanish, Japanese, Italian, German, French, Portuguese, Polish
Compatibility:
Please note that the battery type and CCA (Cold Cranking Amp) ratings are indicated on the battery sticker. Please note them before use.
BT200 supports the following types.
1.VRLA/GEL/AGM/EFB
2. regularly flooded
load test
Before the test:
The engine must be on during the test to get results. Make sure all electrical accessories and devices are turned off.
* Turning on and off electrical accessories in the vehicle during the test will affect the accuracy of the test result.
starting test
Before the test:
The engine and all other accessories must be off during the test to get accurate results.
Battery test:
TOPDON BT200 tests each battery according to the selected actual system standard and the rating marked on the battery to get the accurate results.
Before the test:
The engine and all other auxiliary loads must be off during the test to get accurate results. Turn on the vehicle headlights for 2 to 3 minutes until the battery voltage returns to normal when the battery is just fully charged.
Battery system standard description and measurement range
The battery tester analyzer wiltesteach battry according to the chosen system and rating
The battery tester can perform tests on batteries with a nominal capacity of 100-2000CA/30Ah-220AH.
PACKAGE LIST:
1.TOPDON battery tester BT200
2.User Manual
