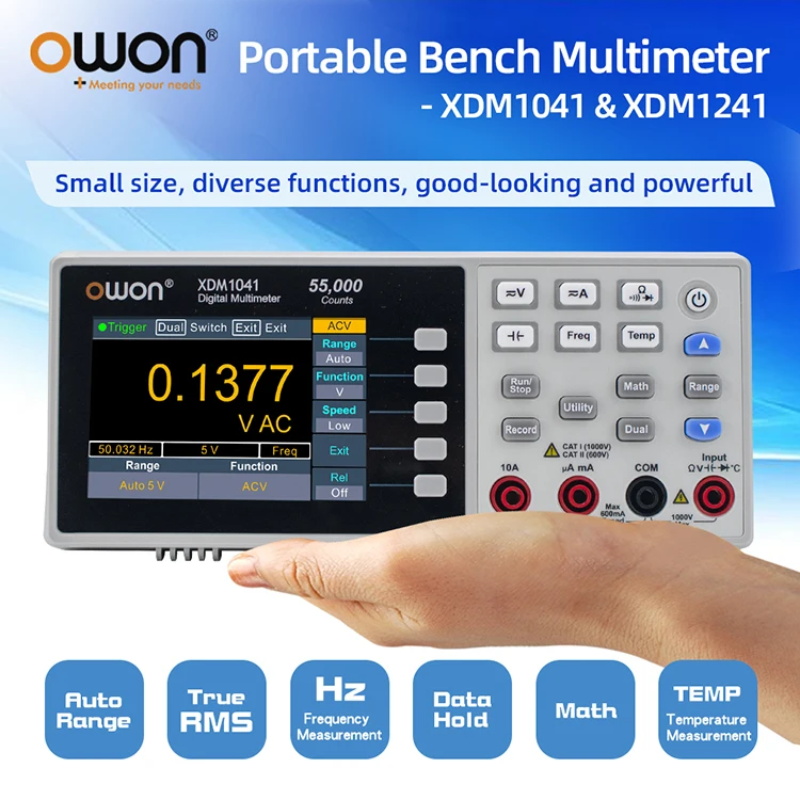

Owon 4 1/2 Digital multimeter portable bench true RMS DC/AC current voltage USB Multi metro Tester Meter
XDM1241 = XDM1041 + built-in battery
Describe

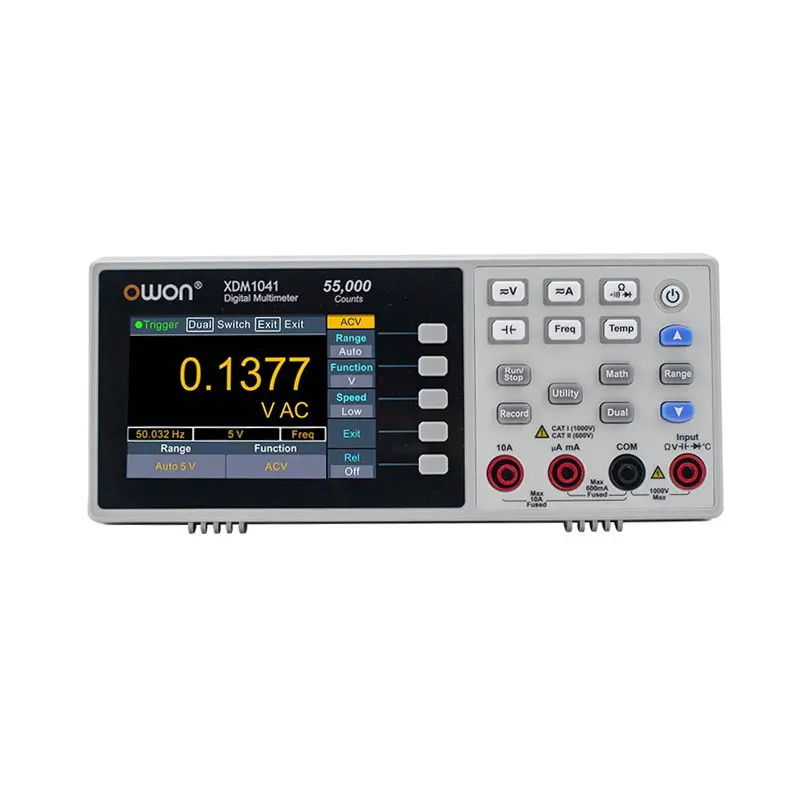

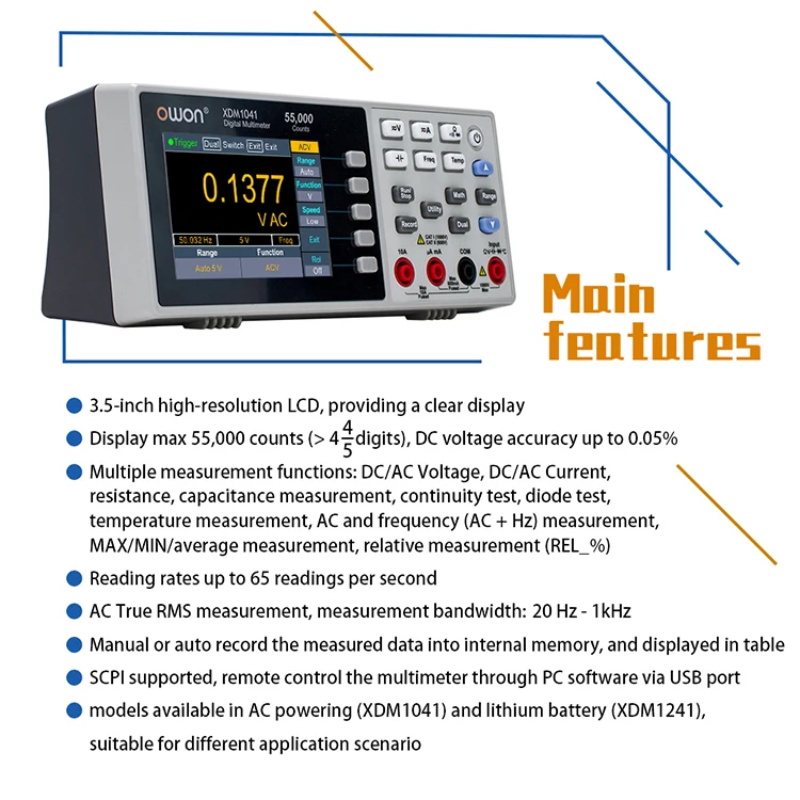

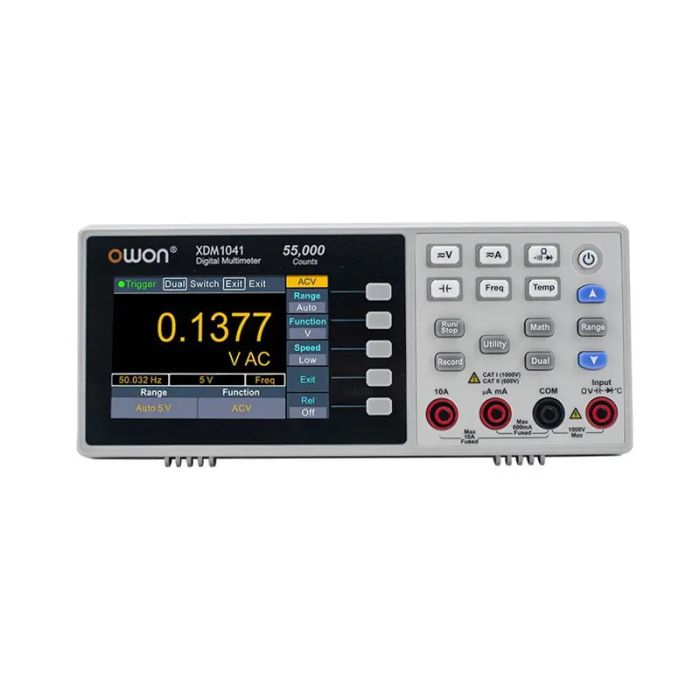

Owon 4 digits XDM1000 series bench digital multimeter

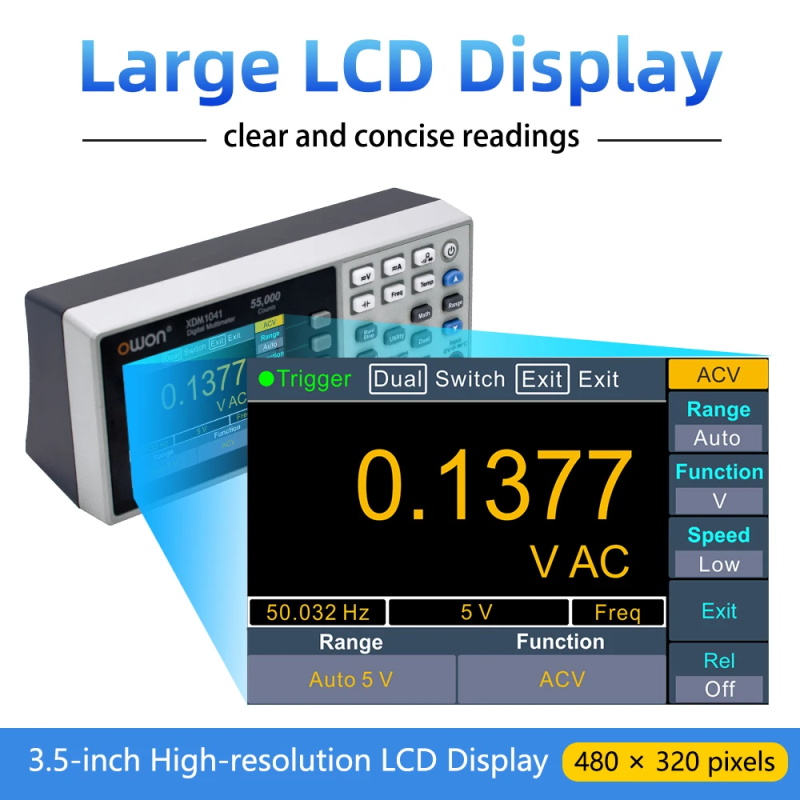

3.5 inch (480x320) high resolution LCD
0.05% counts, DC voltage accuracy up to
+ Up to 65 readings per second
+ True RMS AC voltage/current measurement
+ Dual line display supported
+ Trend analyze accessible in chart mode

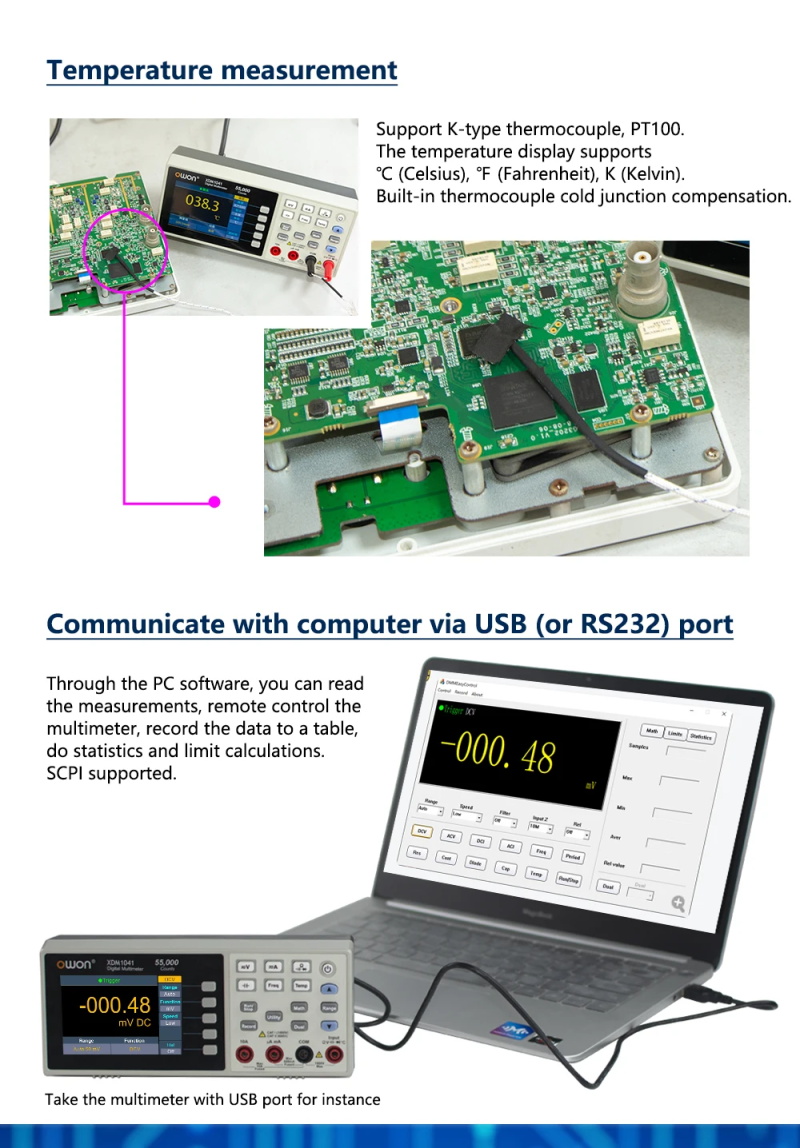

+ SCPI support

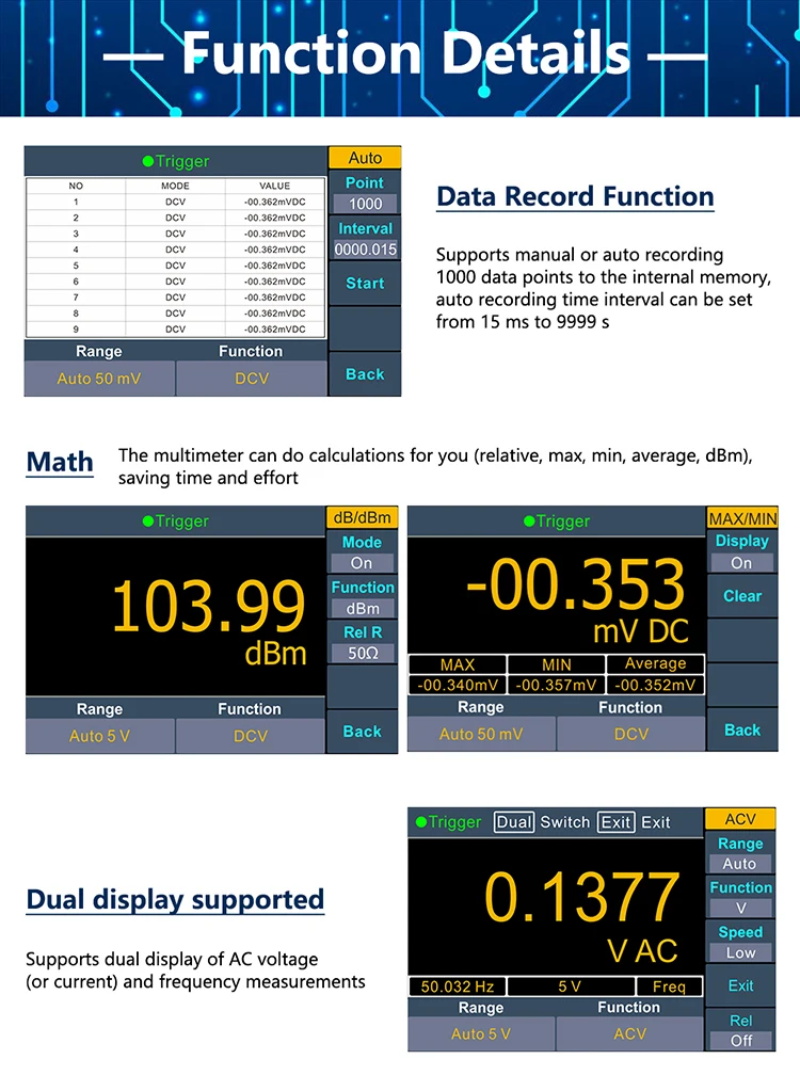

+ Data record function, you can record the measured data into the internal memory and then read and process the recorded data with your computer

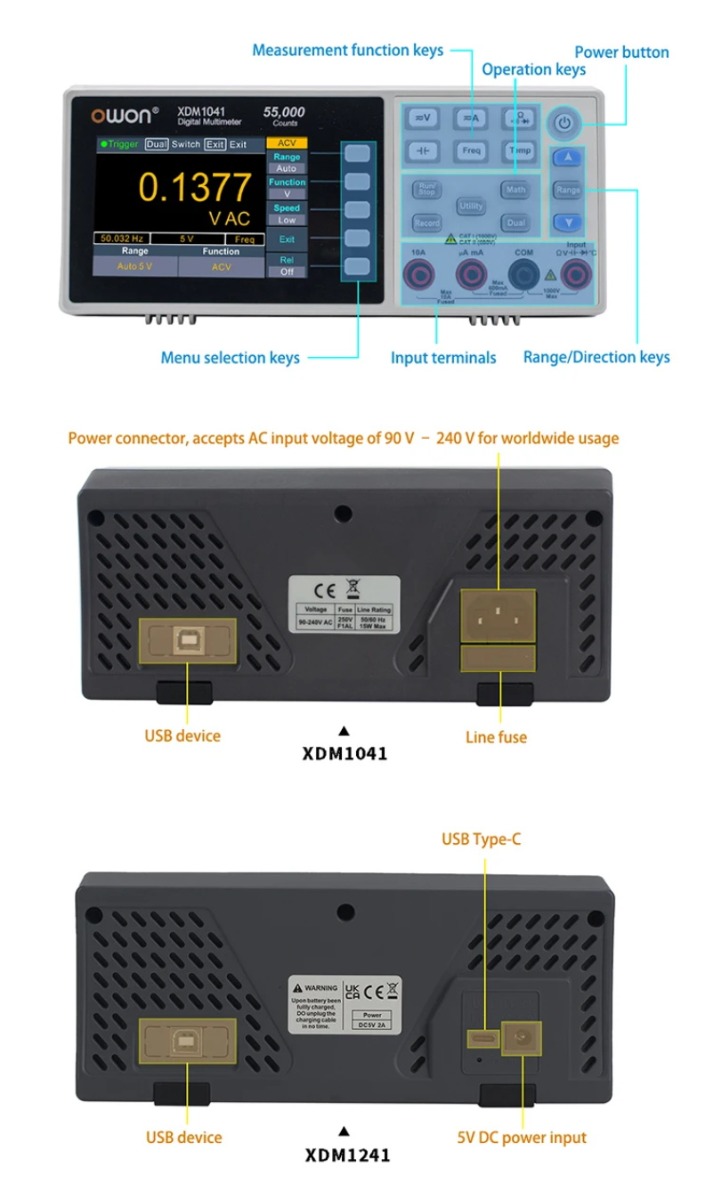

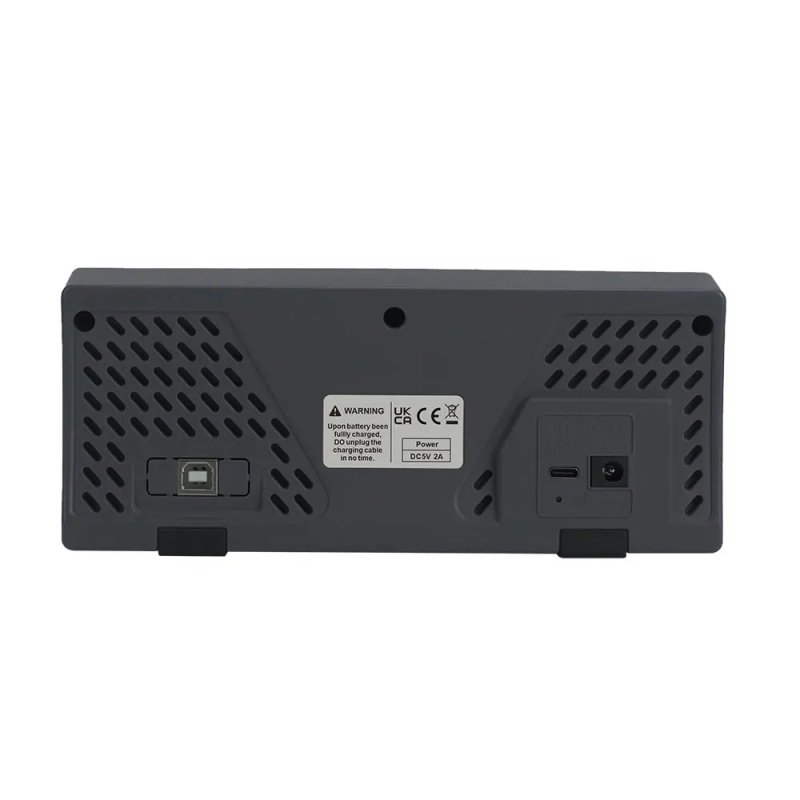

+ Models available in AC (XDM1041) and lithium battery (XDM1241), suitable for different application scenarios
Specifications
Is Smart Device: No
DC Current: 500uA to 10A
AC Current: 500uA to 500mA;5A to 10A
DC Voltage: 50mV to 1000V
AC Voltage: 500mV to 750V
Operation Mode: Manual or Auto
Measuring Capacitance Range: 50nF to 50mF
Measuring Resistance Range: 500ohm to 50Mohm

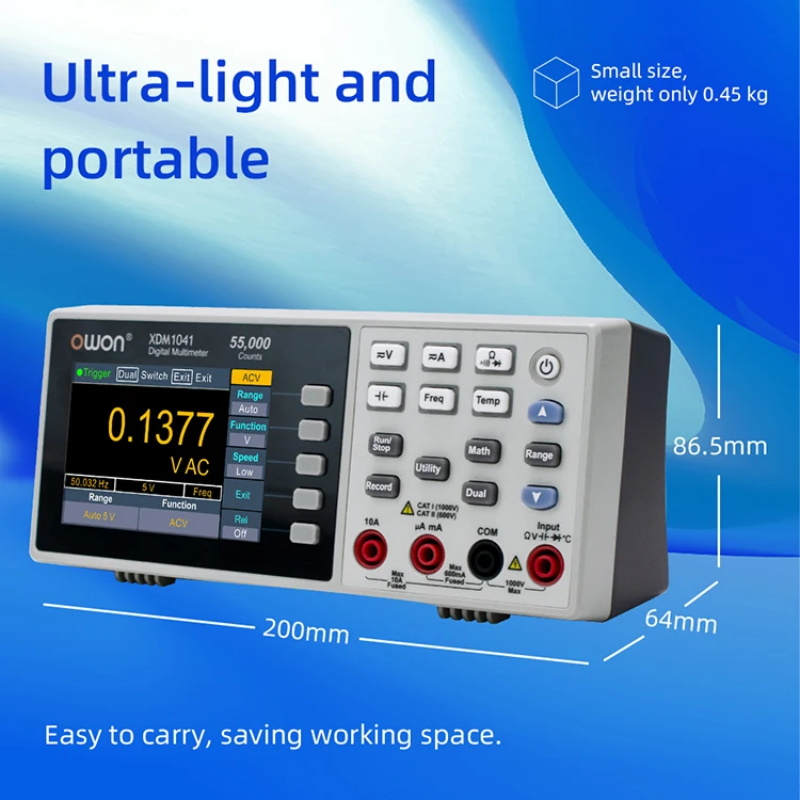

Dimensions: 200x86.5x64mm
Operating Temperature: 0- 40 ℃
Display Type: Digital display
DIY Supplies: ELECTRICAL
Brand Name: owon
Origin: CN(Origin)
Certification: CE

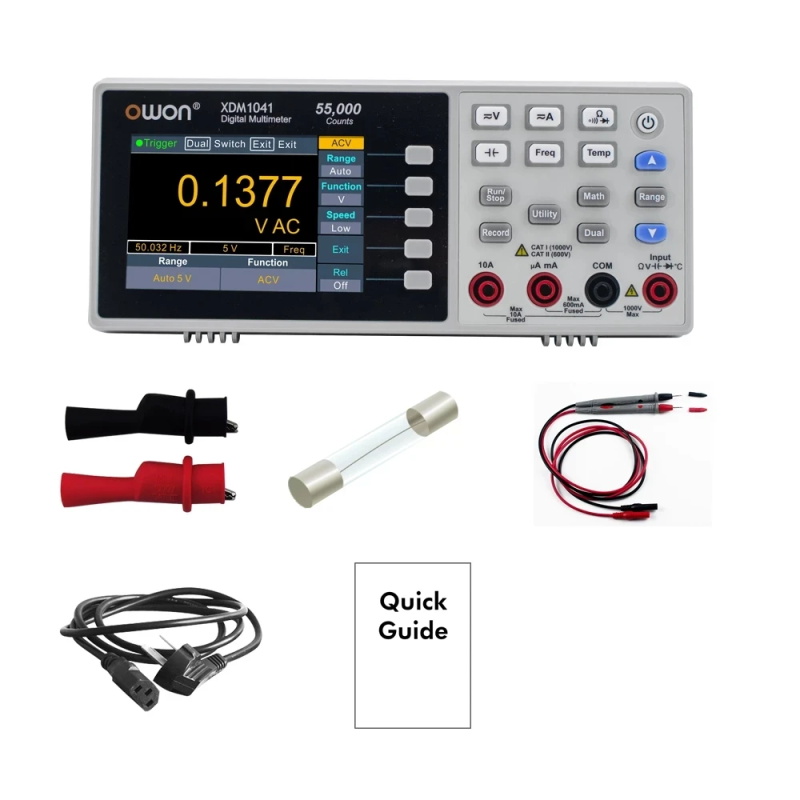

Package Content:
1xmultimeter
1xpower cable
1xusb cable
1xmultimeter lead
1x fuse
1xquick guide
