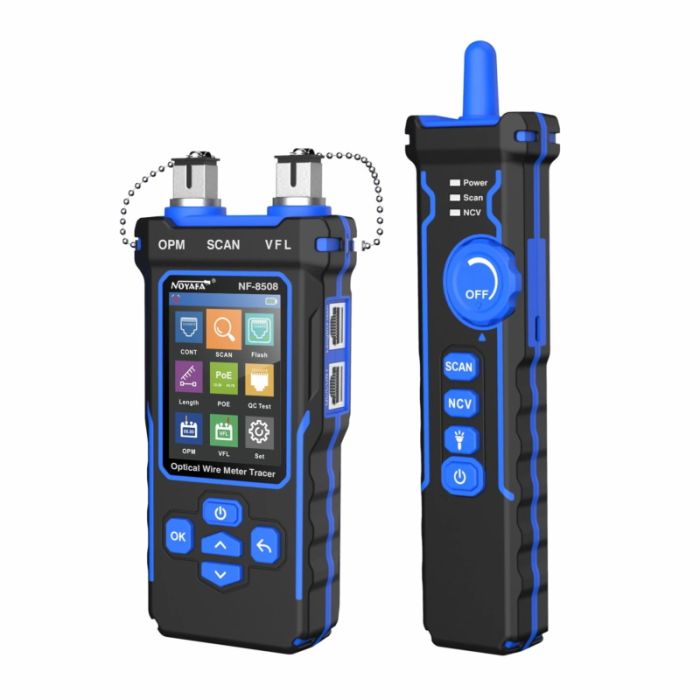

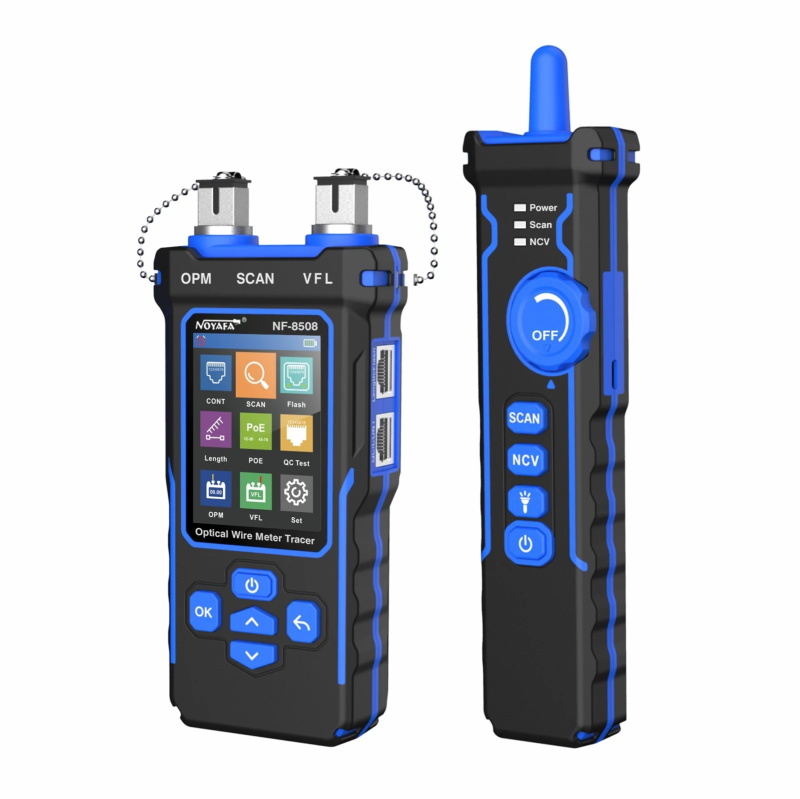

NOYAFA Optical Wire Tracer LCD Digital Network Cable Tester
Characteristics:

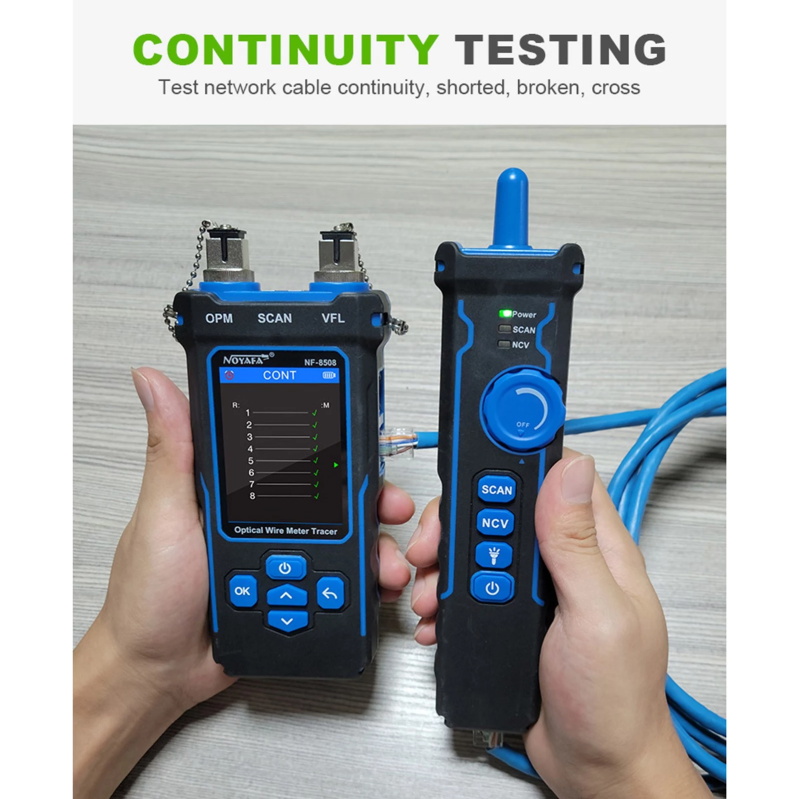

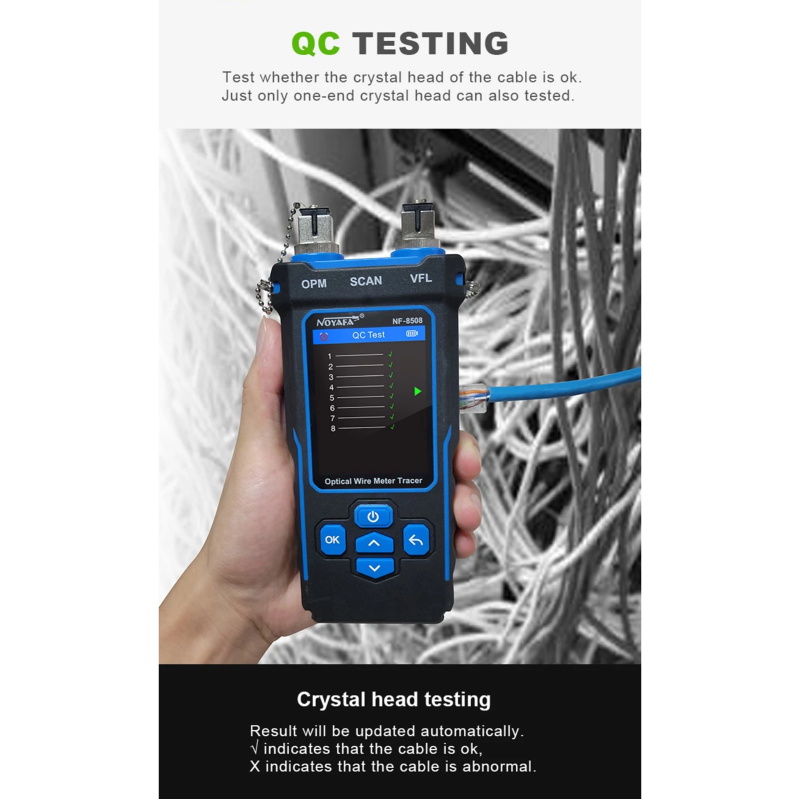

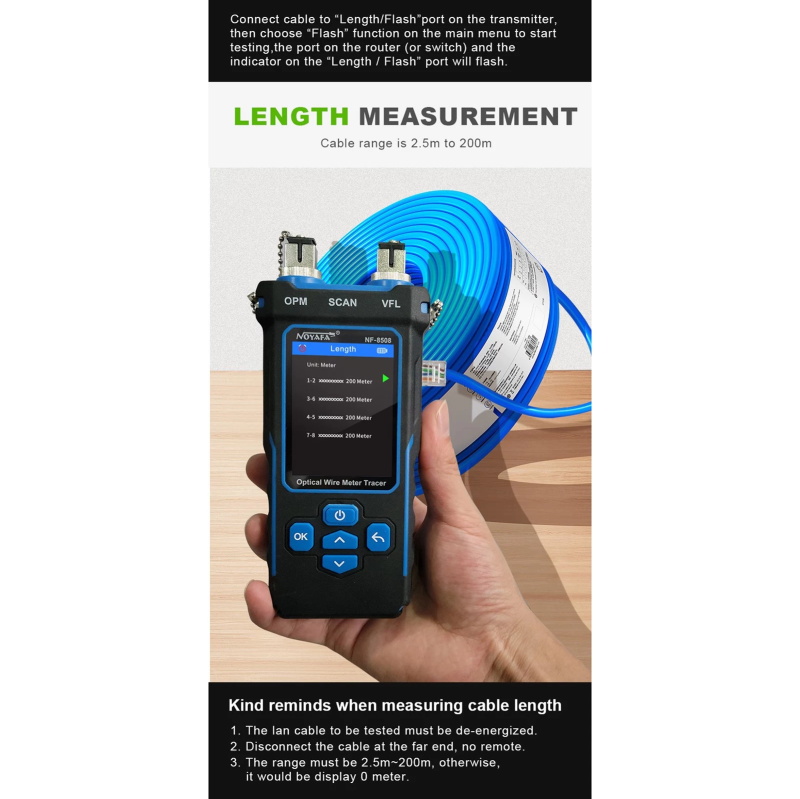

Transmitter test function: including cable continuity test, cable scan, port flashing, cable length measurement, PoE test, crystal head QC test, OPM (optical power meter) and VFL (visual fault location) function.

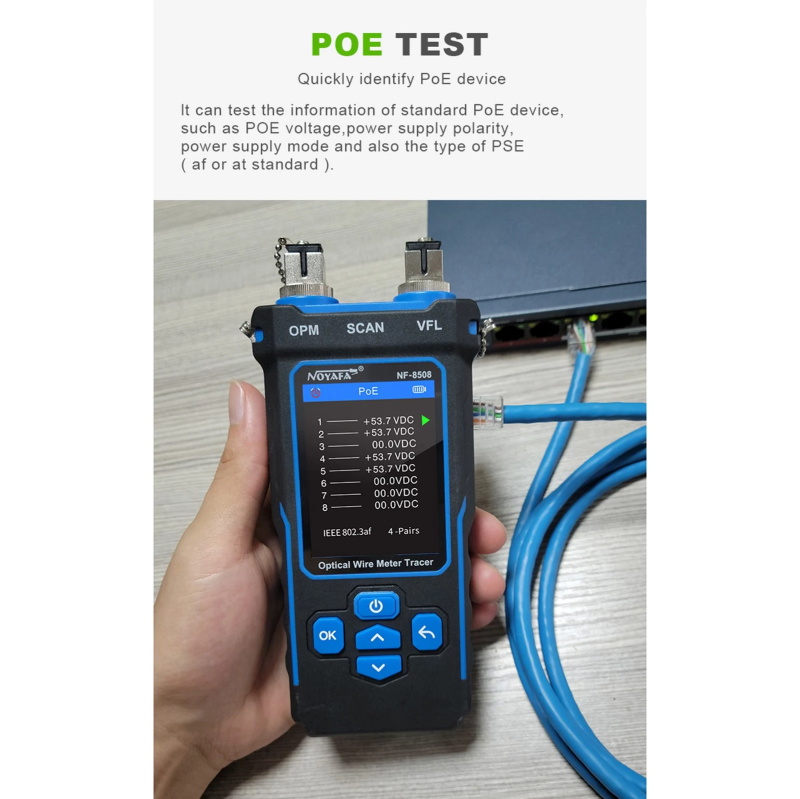

POE test: automatic identification of midspan/endspan/power by 8 cores, automatic identification of standard and non-standard device.

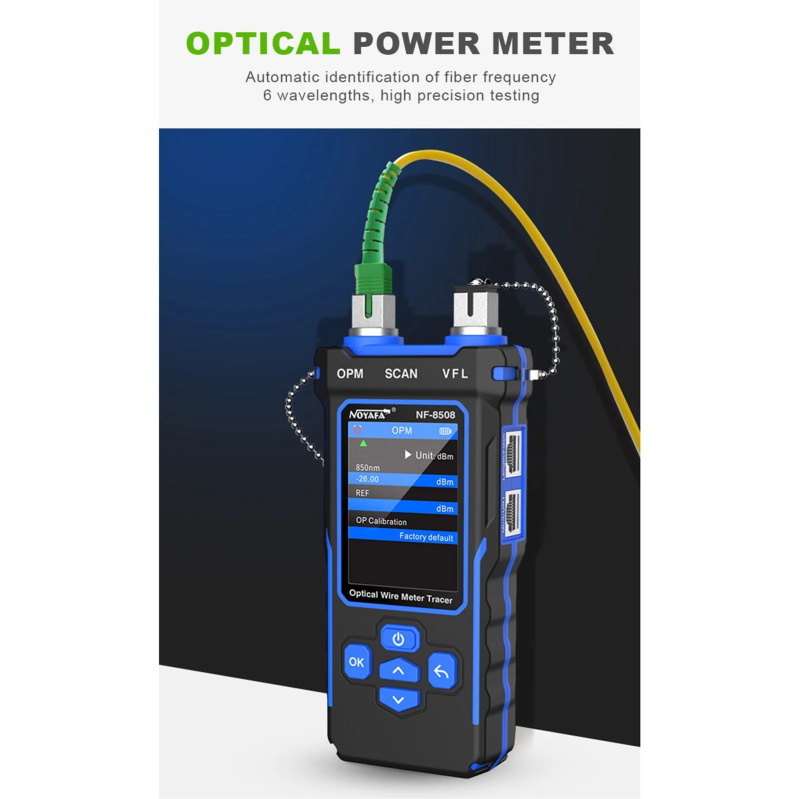

Optical power meter: 850/1300/1310/1490/1550/1625nm wavelength switching; Device switching at dBm, dB or mw, uw, nw; and REF switch.
Visual fault locator: Detect and locate fiber breaks as well as problems such as poor connections, fiber bends or cracks.
Receiver function: sensitivity adjustment, 300m no-load shielded network cable / non-empty shielded network cable, NCV detection, lighting function, etc.
Non-contact voltage detection: The receiver can be used to detect the AC voltage of household electrical wiring.

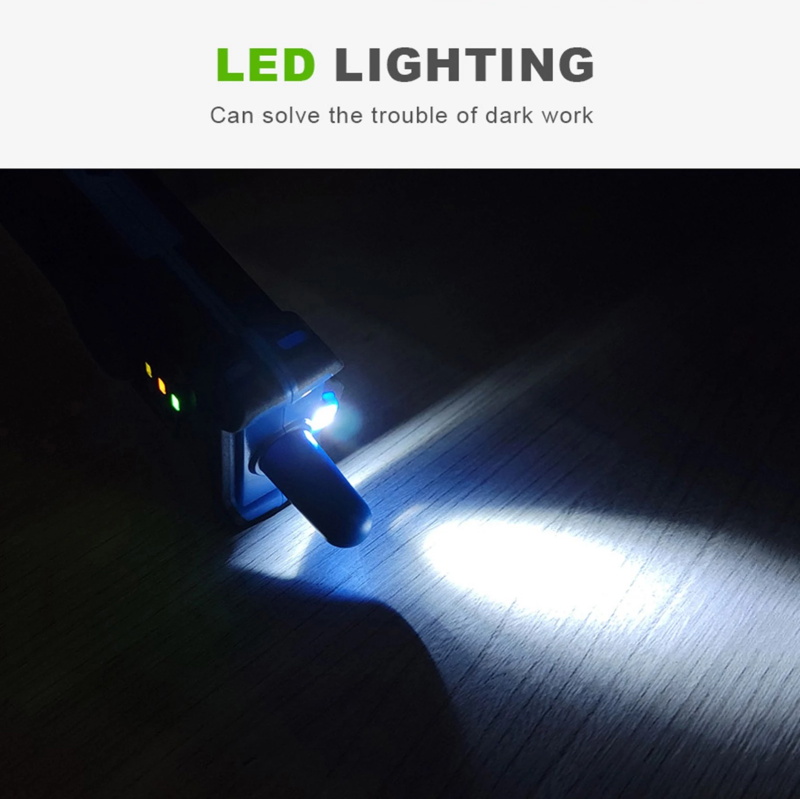

Illuminate function: the receiver with lamp designed for additional illumination of work areas during operation.

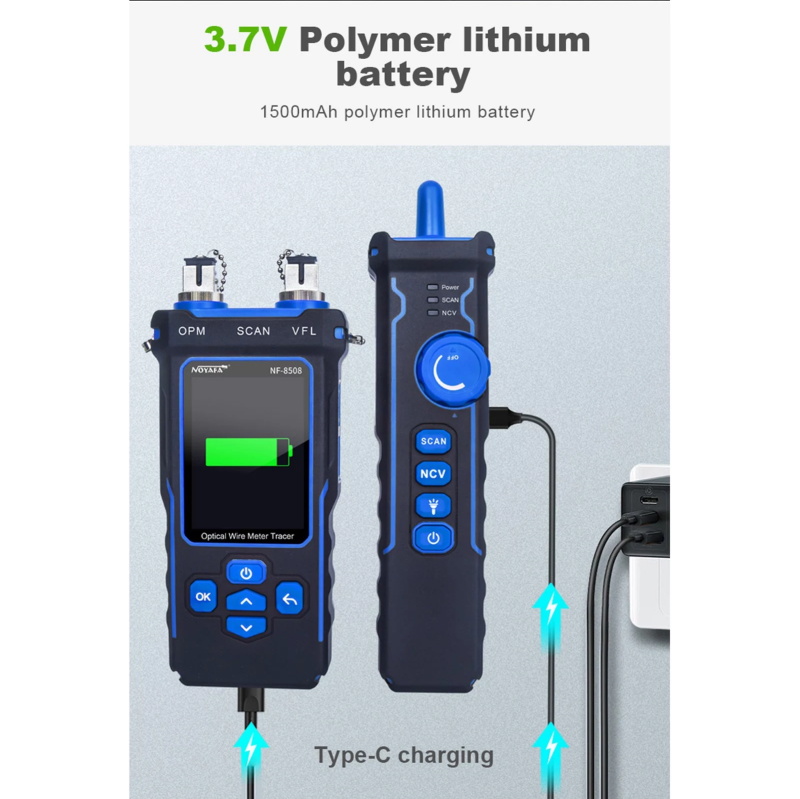

Battery powered: both the transmitter and receiver are built-in 1500mAh polymer battery, no need to change battery, Type-C charging, with charging indicator and battery level indicator.
Other settings: backlight brightness (level 1/2/3), backlight time (MAX/1min/30S/15S), auto-off time (15min/30min/1h/2h/off), red light flash under VFL function (fast flashing / slow flashing / ON).
Wide applications: suitable for network line engineering and maintenance work of telecommunications, computers, other metal conductors, etc.

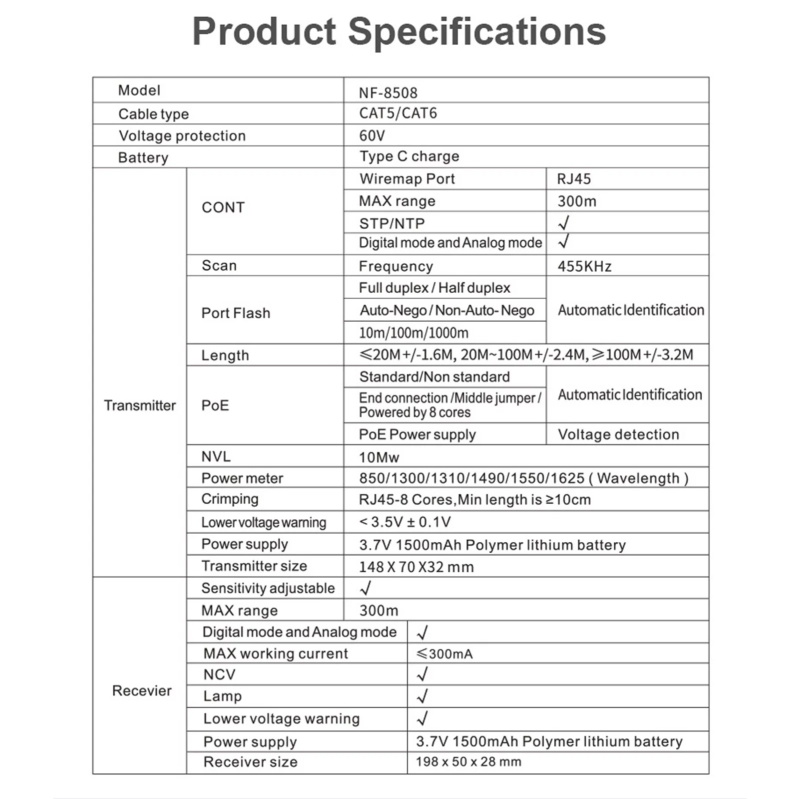

Technical data:
Material: Plastic
Cable type: CAT5/CAT6
Voltage: 60V
Packaging weight: 586g / 20.67oz
Package size: 24 * 16.5 * 5.5cm / 9.45 * 6.50 * 2.17in

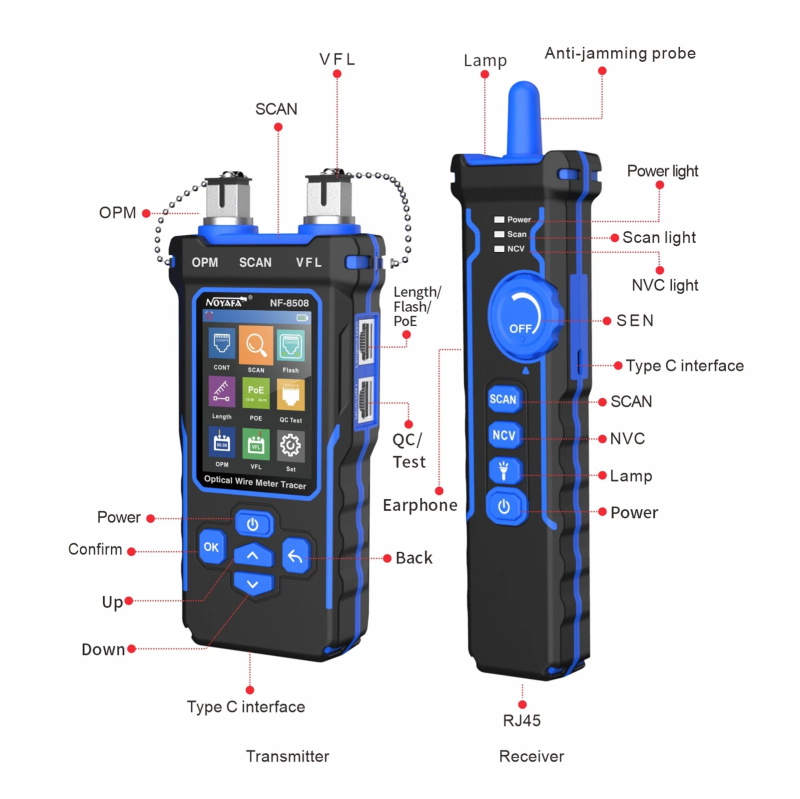

SUBMITTER:
Wiremap port: RJ45
Long distance continuity: ?300m
Cable sequence and error test: Yes
STP/NTP: Yes
Short circuit reminder: Yes
Anti-jamming and normal mode: Yes
Audio transmission frequency: 455KHz
Audio transmission distance: RJ45 300m
NVL: 10mW
Power meter: 850/1300/1310/1490/1550/1625nm (wavelength)
Crimping: RJ45-8 cores, min length is ?10cm
Low voltage prompt: <3.5V ± 0.1V, power indicator flashes
Power supply: 3.7V 1500mAh polymer lithium battery

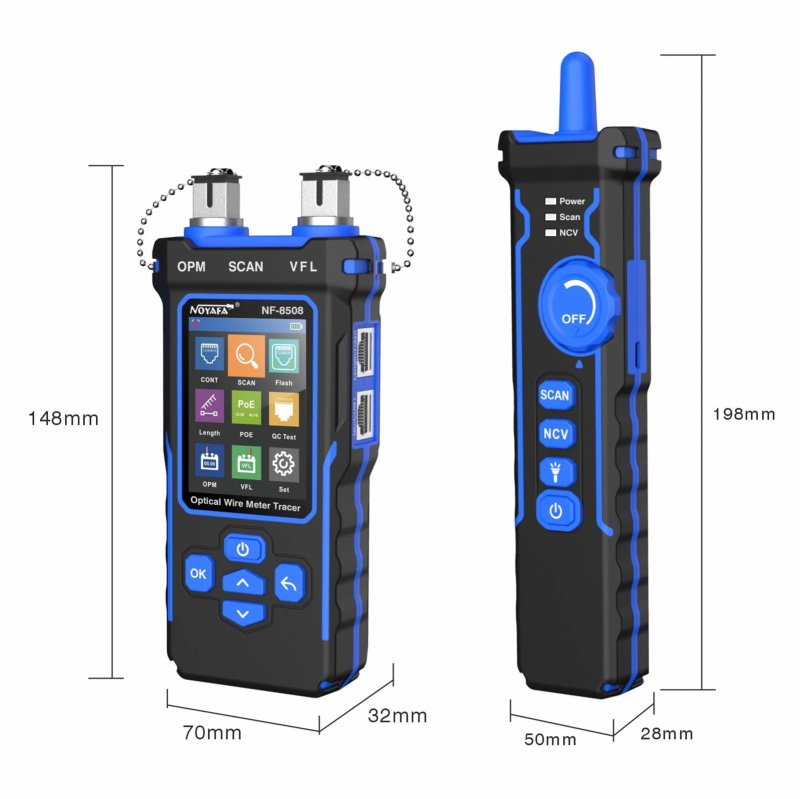

Size: 148*70*32mm/5.83*2.76*1.26in
(receiver)
Scan current: ?300mA
Long distance continuity: ?300m
NCV detection: Yes
Light source: Yes
Low voltage prompt: Yes
Power supply: 3.7V 1500mAh polymer lithium battery
Size: 198*50*28mm/7.80*1.97*1.10in

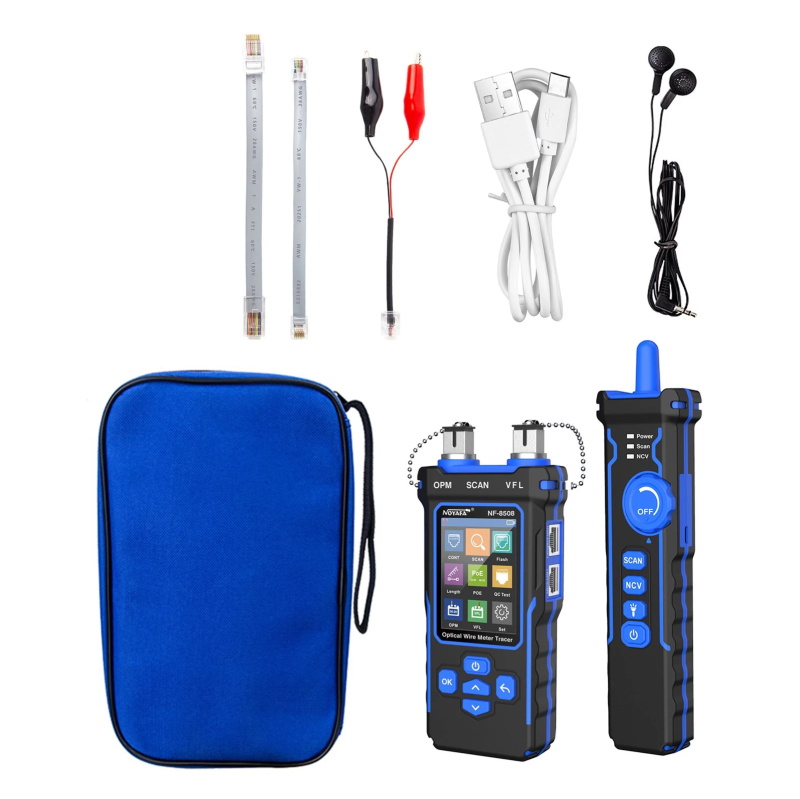

Package list:
1*Transmitter
1*Receiver
1 * RJ45 adapter line
1 * RJ11 adapter line
1 * Alligator clip test line
1 * Type-C data cable
1*Headphones
1*carry bag
1 * Manual (English)
