Full HD 4k 48mp hdmi TYPE-C digital industrial microscope 150x adjustable zoom lens microscope kit for soldering magnifying repair
Product description:

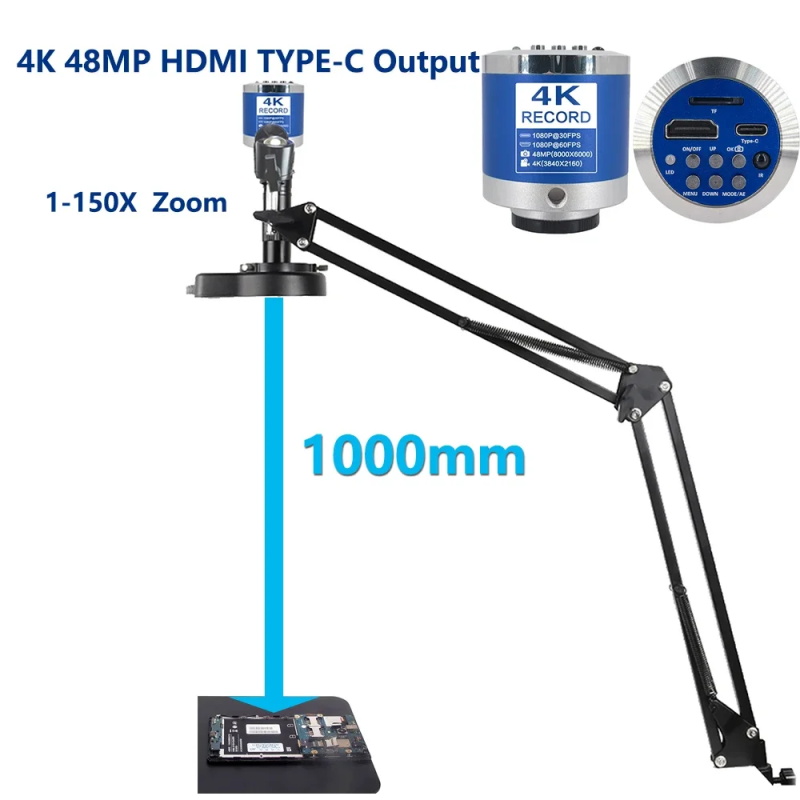

Maximum working distance of the lens 1000m!
Be sure to use the microscope in a bright environment, otherwise the image will not be clear.
Description
2023 updated HD digital microscope with HDMI TYPE-C output, the bracket can be rotated according to your needs, while the lens supports 1-150x continuous zoom. It can definitely be a good helper for your daily work. QC inspection, educational purpose inspection, printing industry, industrial inspection, circuit board material, jewelry and stamp collection, textile industry, biological inspection
4K 48MP HDMI TYPE-C output camera superiority:
◆ With a 2-megapixel imported Sony sensor;
◆ With a 1/2.8 inch image sensor, the perspective is wider than 1/3 inch;
◆ HDMI 1080p 60fps image output;
◆ TYPE-C no-drive output 1080p 30-frame image output;
◆ 4k video recording;
◆ 48 million photos, jpg format, photo size 8000x6000;
◆ One-click freeze/thaw function;
◆ 48-megapixel photo capture and one 1080p video recording;
◆ Electronic scaling function;
◆ Automatic exposure/one-click exposure, adjusting the exposure compensation value;
◆ Automatic white balance/one-key white balance, red, green, blue adjustable;
◆ Provide 16 line drawing line function, line color, thickness, adjustable position;
◆ Adjust the middle cross line display/close; ◆ Support for TF card storage, up to 64GB support;
◆ Support remote control operation, take photos without shaking the image more clearly;
◆ Support for Chinese and Traditional Chinese and English menu languages;
◆ Support the shutdown setting parameter saving;
◆ Aluminum alloy shell processed by CNC fine milling technology;

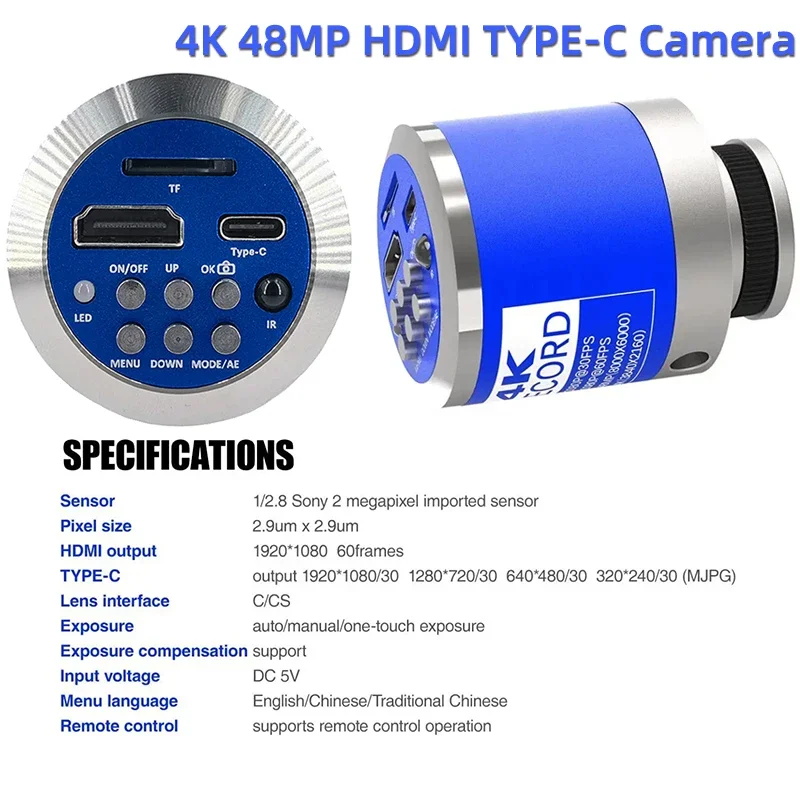

Specification parameters:
Plug: EU plug
Sensor: a 1/2.8 Sony 2 megapixel import sensor
Pixel size: 2.9 µm × 2.9 µm
HDMI output: 1920*1080 60fps
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (mjpg)
Lens interface: c/cs
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support RGB adjustable
Memory card: max. support is 64GB
Input voltage: DC: 5V
Lineation: 16 lines, with adjustable color, thickness and position
Central Line: Support
Menu language: English/Chinese
Tele controller: Support remote control
Camera net weight: 150g

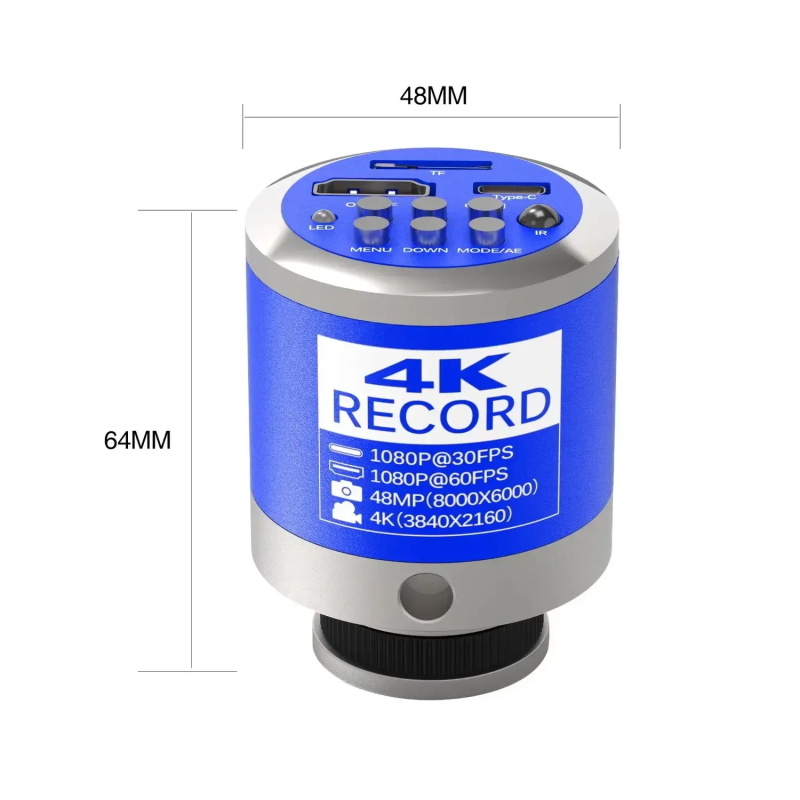

Size: 66*66*49mm

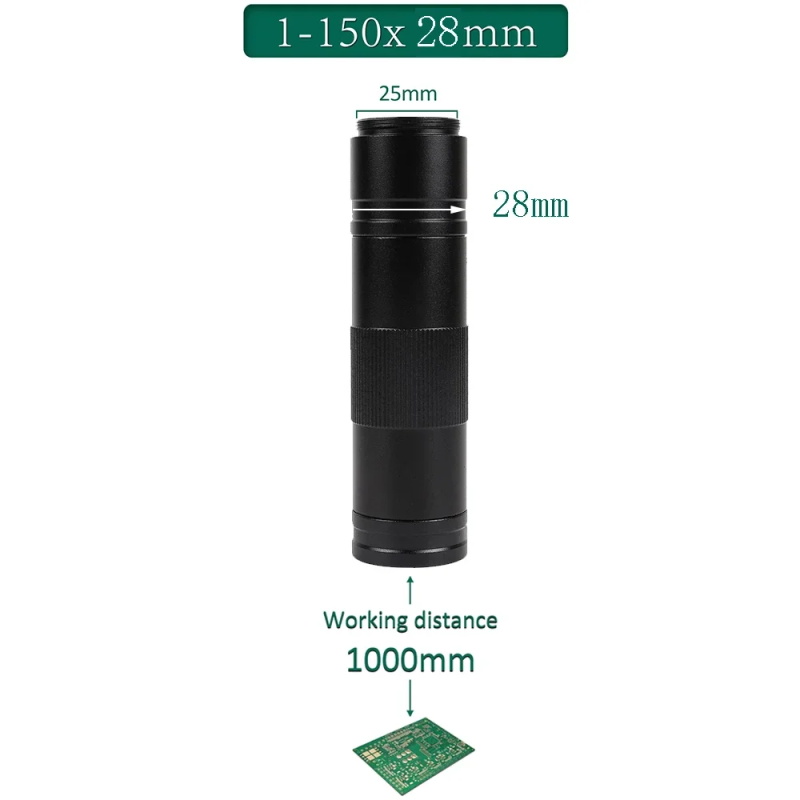

1x-150x zoom c-mount lens:
Working distance: 50mm-1000mm
Zoom ratio: 1 : 15
Magnification power by 0.15-2x (about 1-150x on the display)
Field of view of max multiple: 4.2mm * 2.4mm
Field of view of min multiple: 130mm * 70mm
Size: 30mm (diameter) * 99mm (length)
Weight: 195g
56 bright white LED lamps:
100,000 hours life
Intense and focused shadow-free illumination
Brightness from 0-100% adjustable, high brightness
Variable intensity control
Power consumption: 90-260V, 50-60Hz
Suit for the diameter of the lens: 30mm-63mm
Working distance: 400mm

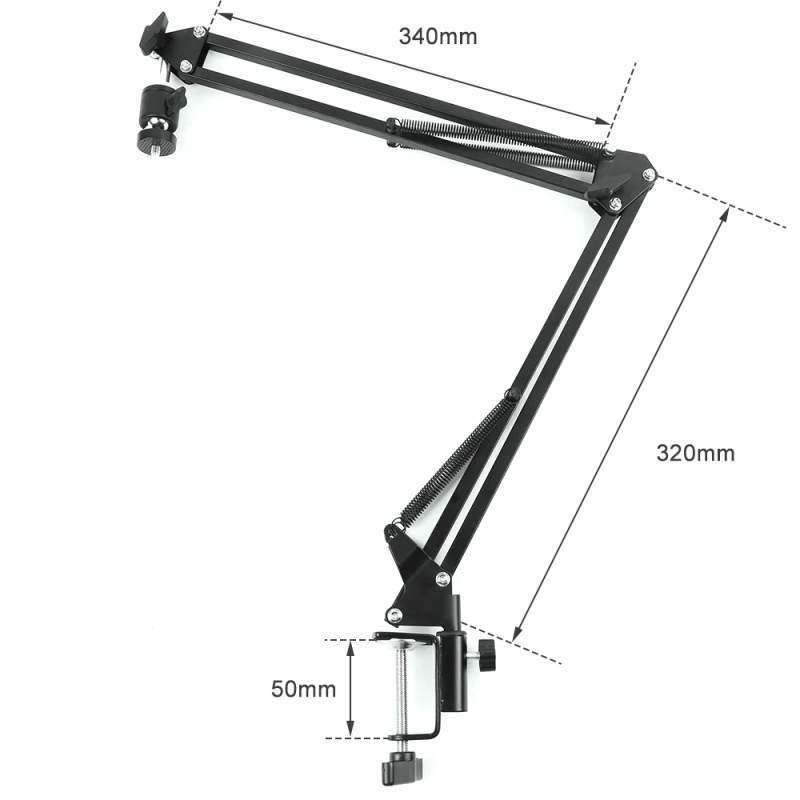

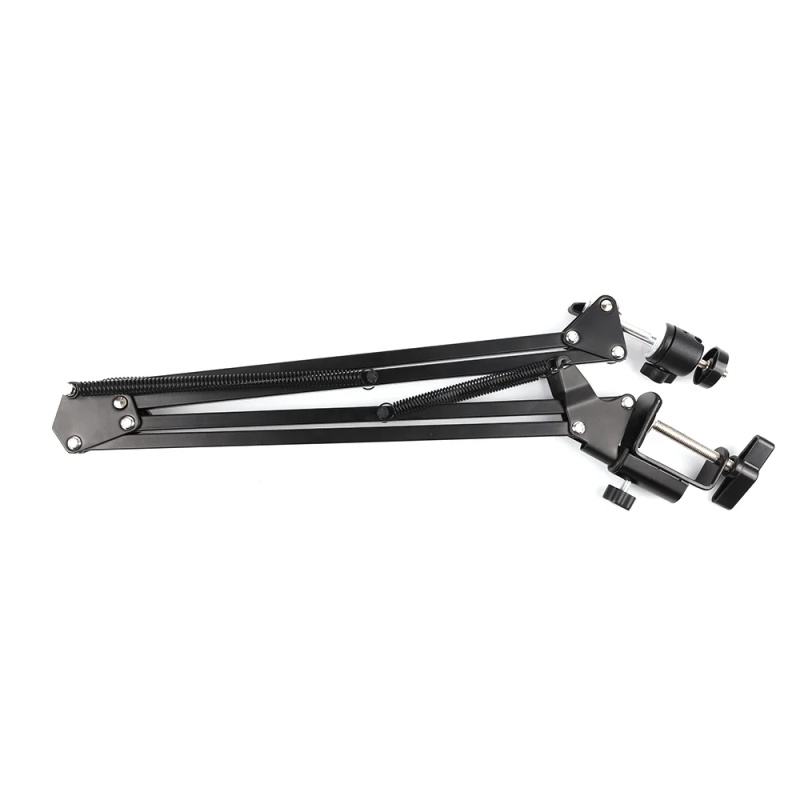

Adjustable bracket:
Size: 340mm + 320mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a desk lamp to fill the light.

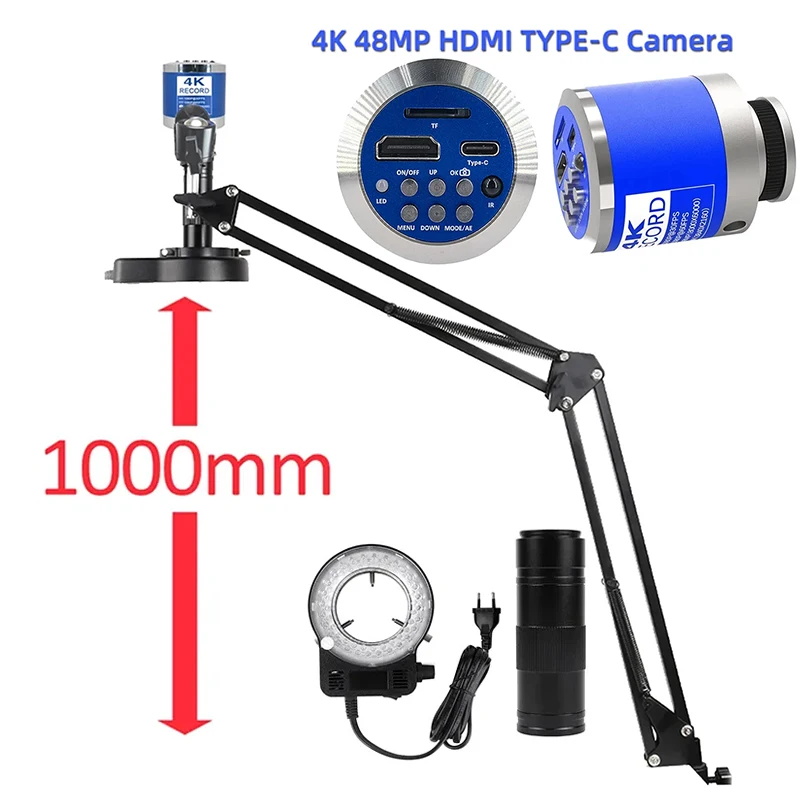

Full microscope packing list:

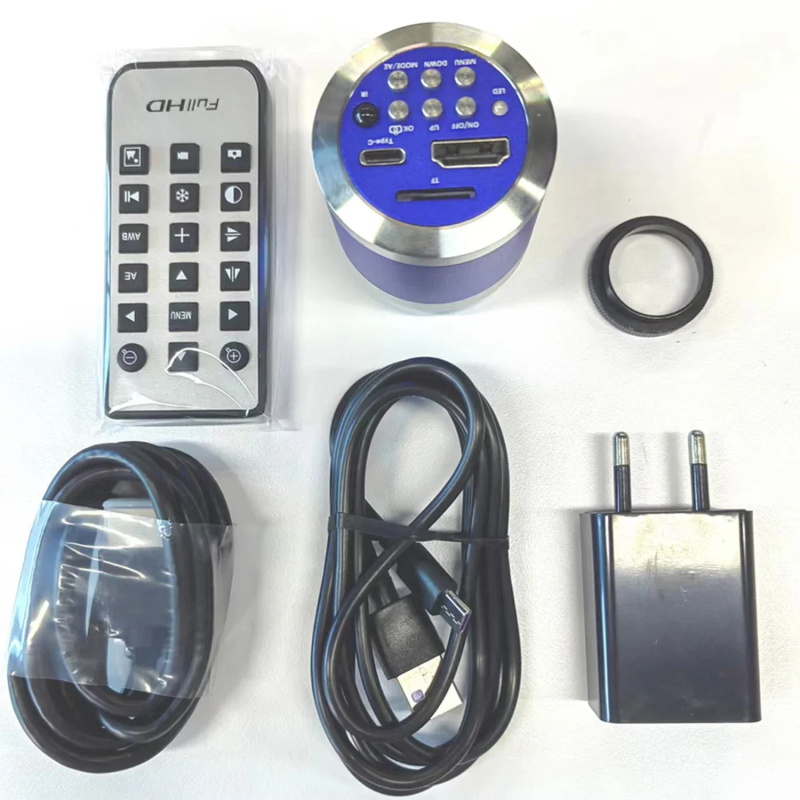

1 * Camera set (camera and accessories part)
1 * Black LED ring light
1 * 150x zoom lens
1 * Foldable stand
