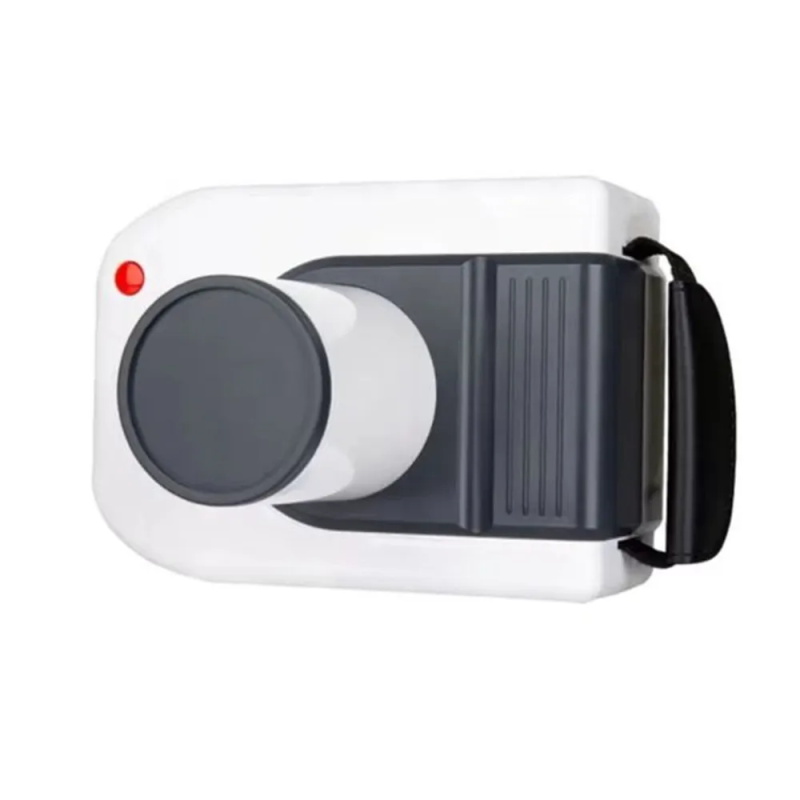

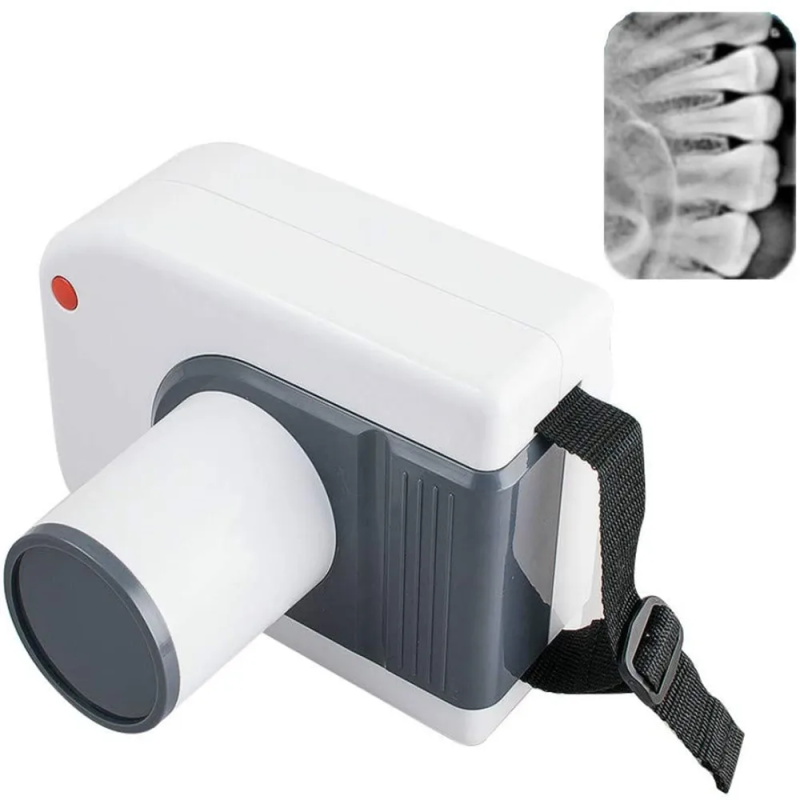

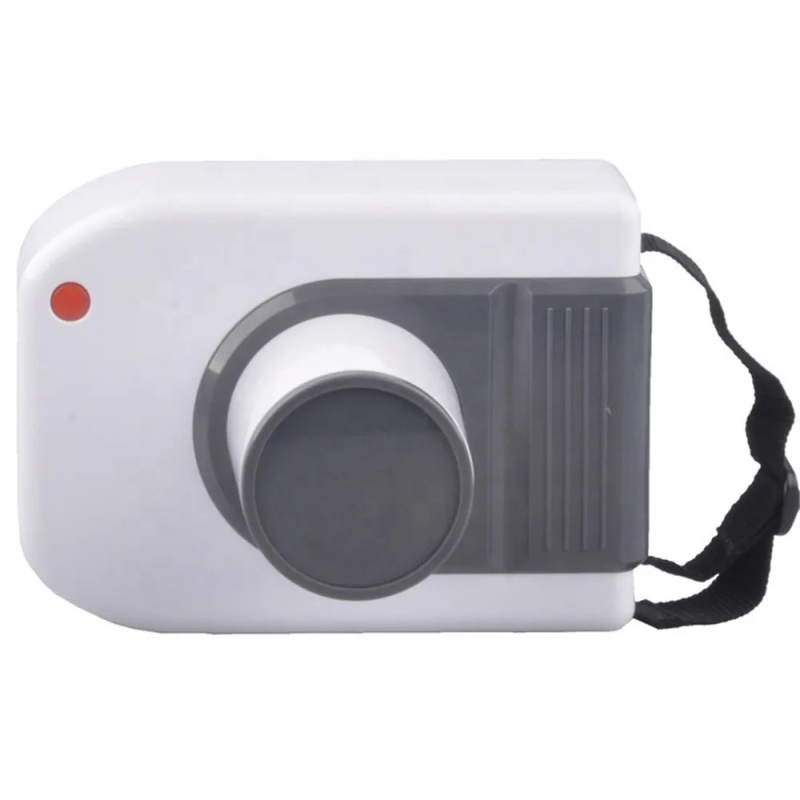

Dental X-ray camera unit high frequency portable imaging system Dental RVG image sensor system dentist tools, can connect sensors, suitable for oral pretreatment, understand the internal tissue structure, tooth root depth
Description
1. This portable dental medical X-ray unit is high frequency machine.
2. the body is small, light weight and almost no radiation. It has excellent image quality, portable storage, save more space. It uses international high frequency and direct current power.
3. All components are concentratedly installed in the central PC board. Shock, setup, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
4. There are also manual buttons installed on the surface of the shell, as well as batteries and charges.
5. This unit especially suitable for oral pretreatment for learning internal organization structure, root depth and so on, is indispensable in everyday clinic equipment, especially for dental implant surgery.
6. It can also connect with sensor, is great convenience.
Specifications
Type: Wireless Portable X-ray Camra
Model: WM-285-F
Pipe voltage: 60kv
Tube current: 1ma
Exposure time: 0.1-2s
Frequency: 30khz
Tube focus: 0.3mm × 0.3mm
The distance from the skin to the cone: 130mm
Battery: DC 14.8V 6400mAh
Rated power: 60va
Charger Input voltage: AC100V-240V ±10%
Output voltage: DC 16.8V
Ambient temperature: 5-40°c
Relative air humidity: <75% rh
Net Weight (Main Body): 2.5kg
Size (mm):138*165*185
