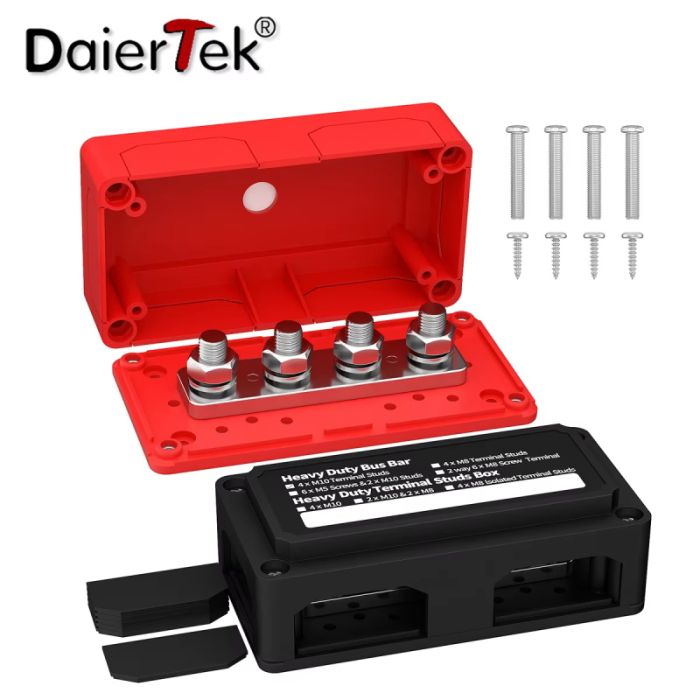

300A Busbar, Heavy Duty Power Distribution Block, Busbar Box Module Design with 4 x M8 (5/16 inch) Terminal Bolts for Car, RV, Boat
Describe
【Brief info.】Busbar dimensions (l x w x h) | 138x69x39mm. Bolt size: m8 (5/16"); Max. operating voltage: DC 48V; Max. continuous current: 300A
【Waterproof & dustproof】 Removable window for unobstructed wiring. In addition, with four removable side plates and two insulated rear covers, the power distribution block is designed to withstand rain and dust and withstand air and seawater erosion.
【Excellent design】 The base is reinforced with nylon fiberglass to protect your safety, ensuring great mechanical strength and durability.
【Incredible performance】 Bus and screw material: The battery distribution block is made of high quality brass and nickel-plated, with good electrical performance.
【Easy installation】 The surface of the battery distribution block is firm and installed with screws, and the four mounting holes make it easy to install the terminal block in any direction.
Features:
Highest busbar (300A) rated. With M8 (5/16") terminal bolts
Modular box design for easy wiring configurations.
Fiberglass reinforced nylon base and housing provide great mechanical strength and durability.
Removable window for unobstructed wiring.
Blank writing space on the top allows easy labeling for each branch.
Working voltage and package list:
Max current: 300 amps at 12V DC per terminal.
Max voltage: 48v dc
Package includes:
M8 terminal bolts and cover
What is the 300A bus bar used for?
The heavy duty 300 amp bus bar is perfect for your marine, boat, yacht, RV, car, truck, tractor, ATV, etc.
