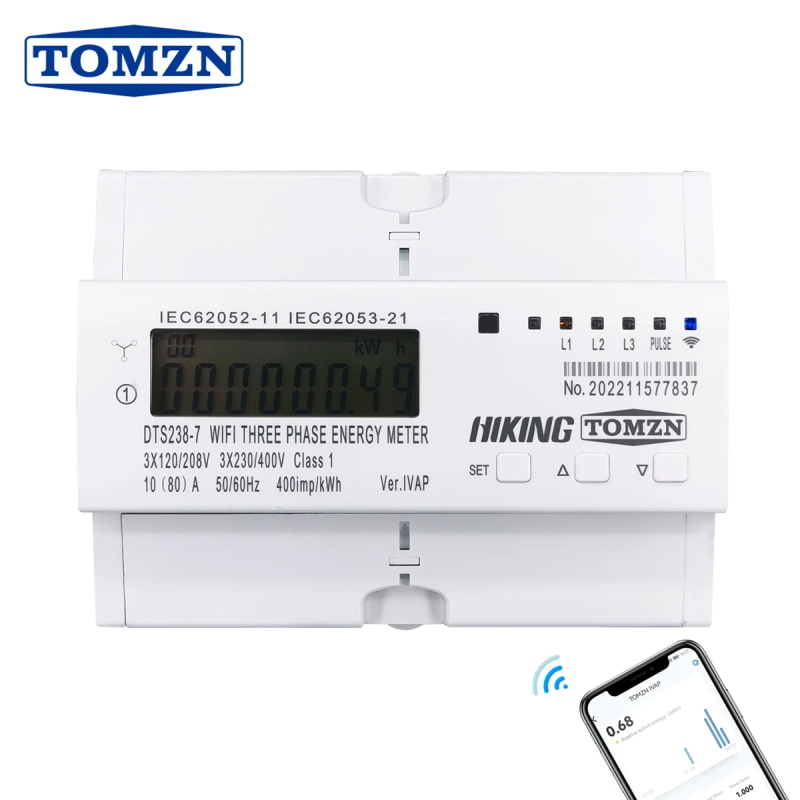

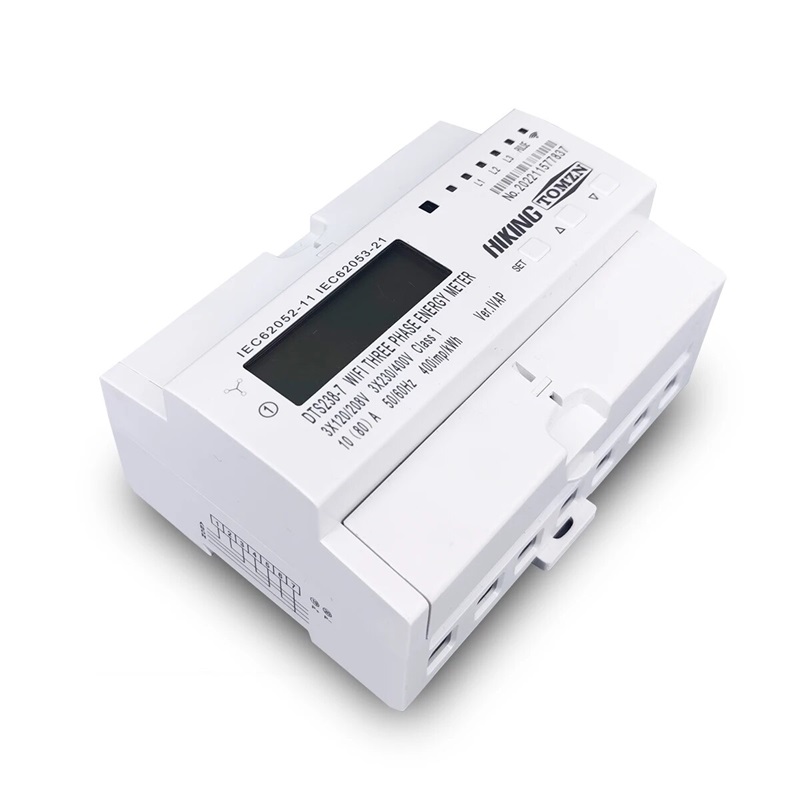

3 Phase 80a Tomzn Tuya WiFi Smart Bidirectional Ale Energy Meter Timer Electricity Consumption Monitor kWh Switch Wattmeter 3*120V 3*220V can be remotely controlled via APP
Description:
Please note that this Tuya WiFi energy meter will update the kwh data when disconnected from WiFi. Ncrease the kwh when discount nect with wifi.
Display each phase voltage, current

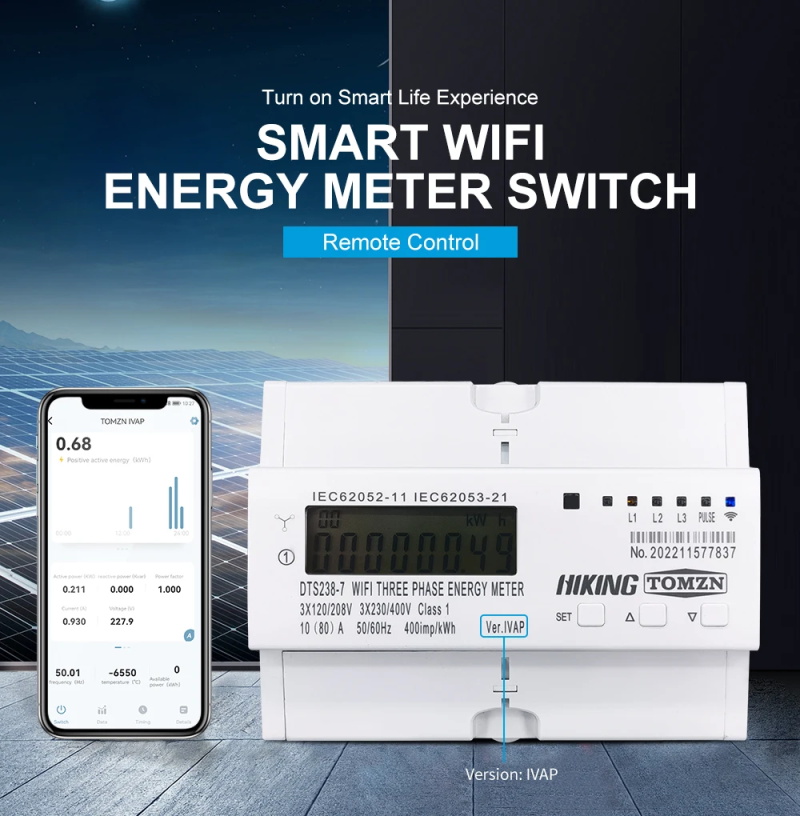

1. Remote control on/off by Tuya App or Smart Life App anytime from anywhere

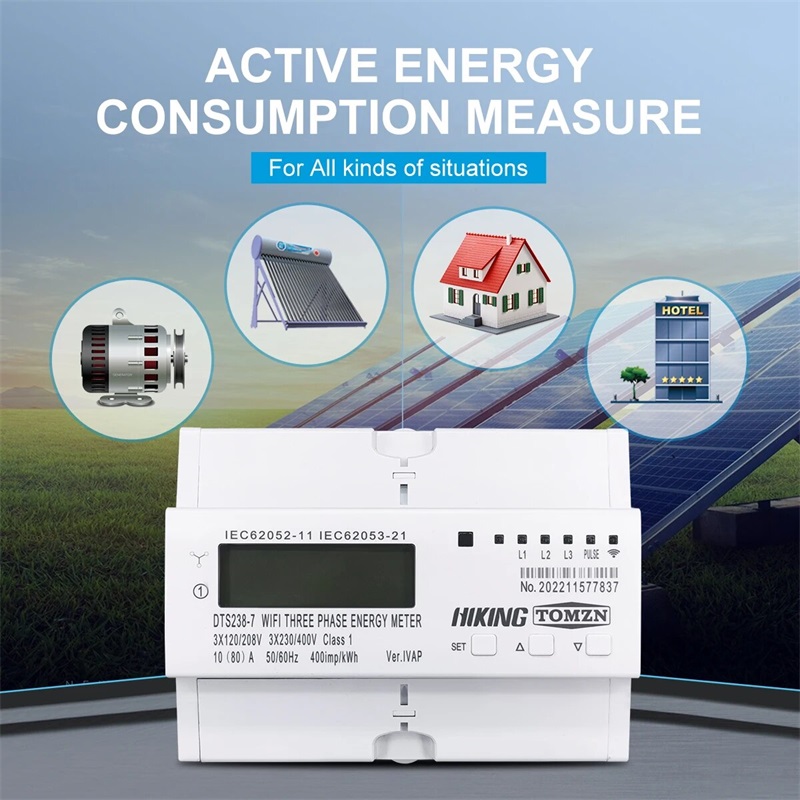

2. Measure total active energy kWh
3. App can read kwh, r.m.s current, voltage, active power
4. Timer control function
5. Delay time cut off function
6. LCD display, real time display of voltage, current, active power, reactive power, electricity factory, frequency, total energy kWh
7. Power supply: 3*120v, 3*230v ac, 50/60hz
8. Rated current: 80a
9. Pulse frequency: 400imp/kwh
10. 35mm Din rail install
11. Can use the same Tuya app, Compatible with other Tuya product such as WiFi socket, LED, fan and so on
12. Active energy exactly is Class 1, IEC62053-21
Press the button last more than 10s, the wifi led flashes quickly, then use app to operation
Note: This meter only supports 2.4G wireless network, not for 5G
New function:
1. positive and negative phase performance + historical performance
2. power email export function
3. PV difference power display
4. Electricity bill display
5. Carbon emissions settings
6. Note that there is no temperature display, leakage protection, unbalance protection function, external power failure, the meter will not be turned off for protection
7. Manual button switch control
8. the function of comparing the performance with the performance of the overall knife
9. Power curve display every 15 minutes for 24 hours of the day 10. Over-voltage and over-current protection settings
11. Operational records and fail-safe data sets
12. Password protected settings
13. Three-phase voltage imbalance protection
14. Three phases current unbalance protection
